Live product · getauctionlist.com

AI Front Door

Get Auction List — enterprise assistant architecture

Authenticated assistant on getauctionlist.com that answers only from approved sources — policy RAG, auction SQL, and allowlisted county tools — with citation grounding and typed failure modes.

As-built · 2026-07 · auction-lens-ai (Next.js BFF) · get-auction-list-api (FastAPI + LangGraph)

Business capability

Answers only from approved sources

Enterprise constraints: browser never calls LLMs or MCP; answers are citation-grounded; failures are typed (completed / partial / failed); no invented auction rows or county dates.

Capability	Intent	Runtime path
Policy / product terms	`knowledge_policy`	Hybrid RAG (chunks + embeddings)
Indexed auction filters	`auction_search`	Deterministic SQL on ingested rows
County schedule / WCAD	`public_property_lookup`	Allowlisted HTTPS tools (live)
Multi-source research	`combined_research`	Parallel fan-out → correlate → synthesize
Refusal	`unsupported_or_unsafe`	Guardrail short-circuit

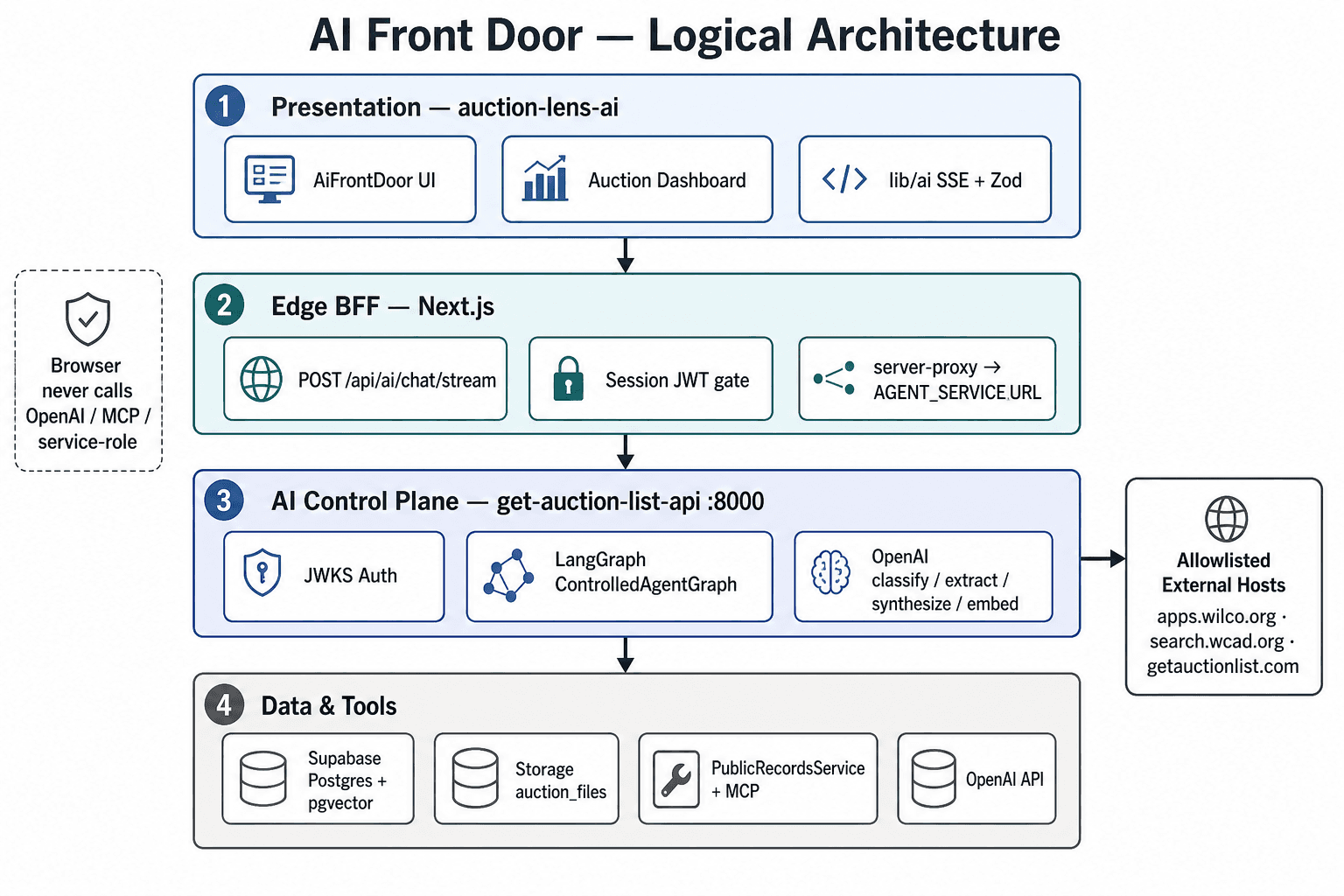

Logical architecture

Frontend → backend layers

Hard boundary: the browser never holds service-role keys and never calls OpenAI, FastAPI, or /mcp for Front Door chat.

AI Front Door logical architecture — Presentation, BFF, AI control plane, and data/tools layers — Logical architecture (frontend → backend)

Layer	Components	Responsibility
Presentation	AiFrontDoorLauncher / Dialog, dashboard, lib/ai	Chat UX, SSE reduce, Zod shapes; dashboard parses Storage xlsx locally
Edge BFF	app/api/ai/{chat,chat/stream,feedback}	Same-origin only; Supabase session → Bearer JWT; proxy to AGENT_SERVICE_URL
AI control plane	FastAPI :8000, JWKS auth, ControlledAgentGraph, OpenAI structured models	Route, retrieve/tools, ground, synthesize, stream
Data & tools	Postgres + pgvector, Storage, PublicRecordsService / MCP, OpenAI	Durable indexes, object bytes, allowlisted egress, LLM/embeddings
Worker	auction-ingestion-worker	Offline policy + spreadsheet ingest into Postgres

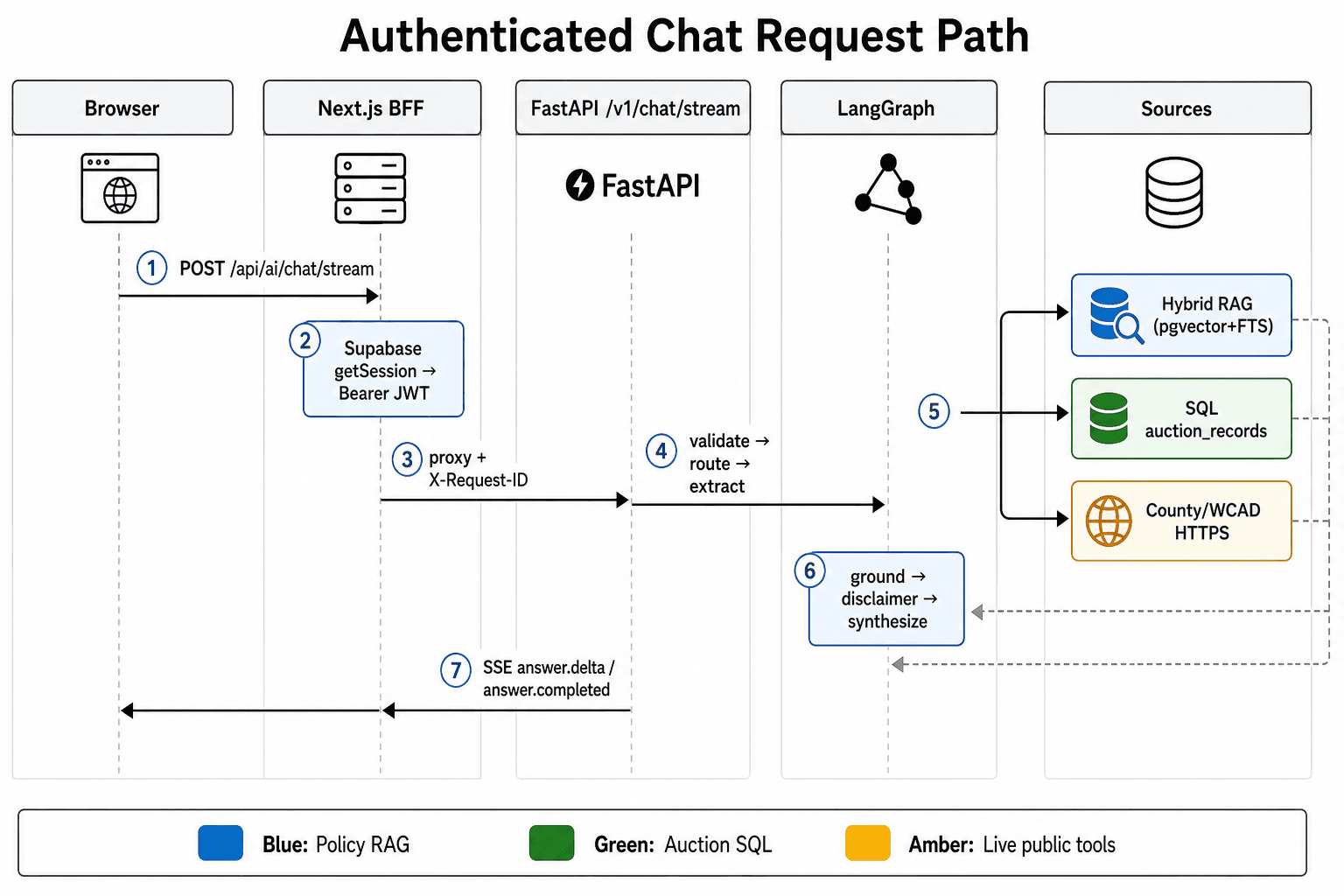

Request path

Authenticated chat flow

1Dialog POST /api/ai/chat/stream with message + optional thread_id
2BFF validates Supabase session and forwards Authorization: Bearer <access_token>
3API validates JWT via JWKS (same Supabase project), starts LangGraph run
4Graph: validate → route → extract → Send to RAG and/or SQL and/or public tools
5Correlate → ground → disclaimer → synthesize (LLM or deterministic fallback)
6SSE answer.delta / answer.completed → UI cards, sources, optional CTA

Stack

Technology (enterprise view)

Layer	Technology	Role
UI	Next.js 16, React 19, Tailwind 4, Base UI	Chat + dashboard
Validation	Zod (FE), Pydantic (BE)	Contract enforcement
BFF	Next Route Handlers	Session gate, SSE proxy, no browser secrets
Auth	Supabase Auth + JWKS	Same project FE↔BE
Orchestration	LangGraph (StateGraph, Send)	Bounded intents & budgets
LLM	OpenAI Responses API (gpt-4.1-mini)	Classify, extract, synthesize
Embeddings	text-embedding-3-small @ 1536 dims	Policy RAG only
Primary DB	Supabase PostgreSQL	Auth, auctions, RAG tables, jobs
Vector / keyword	pgvector + tsvector (english)	Hybrid retrieve
Object store	Supabase Storage auction_files	Monthly xlsx bytes
Public tools	FastMCP Streamable HTTP /mcp	Ops tooling; graph uses in-process service
HTTP egress	ApprovedHttpClient	Host allowlist, SSRF-safe
Obs	Prometheus /metrics, optional OTEL / Langfuse	No prompt/PII dump

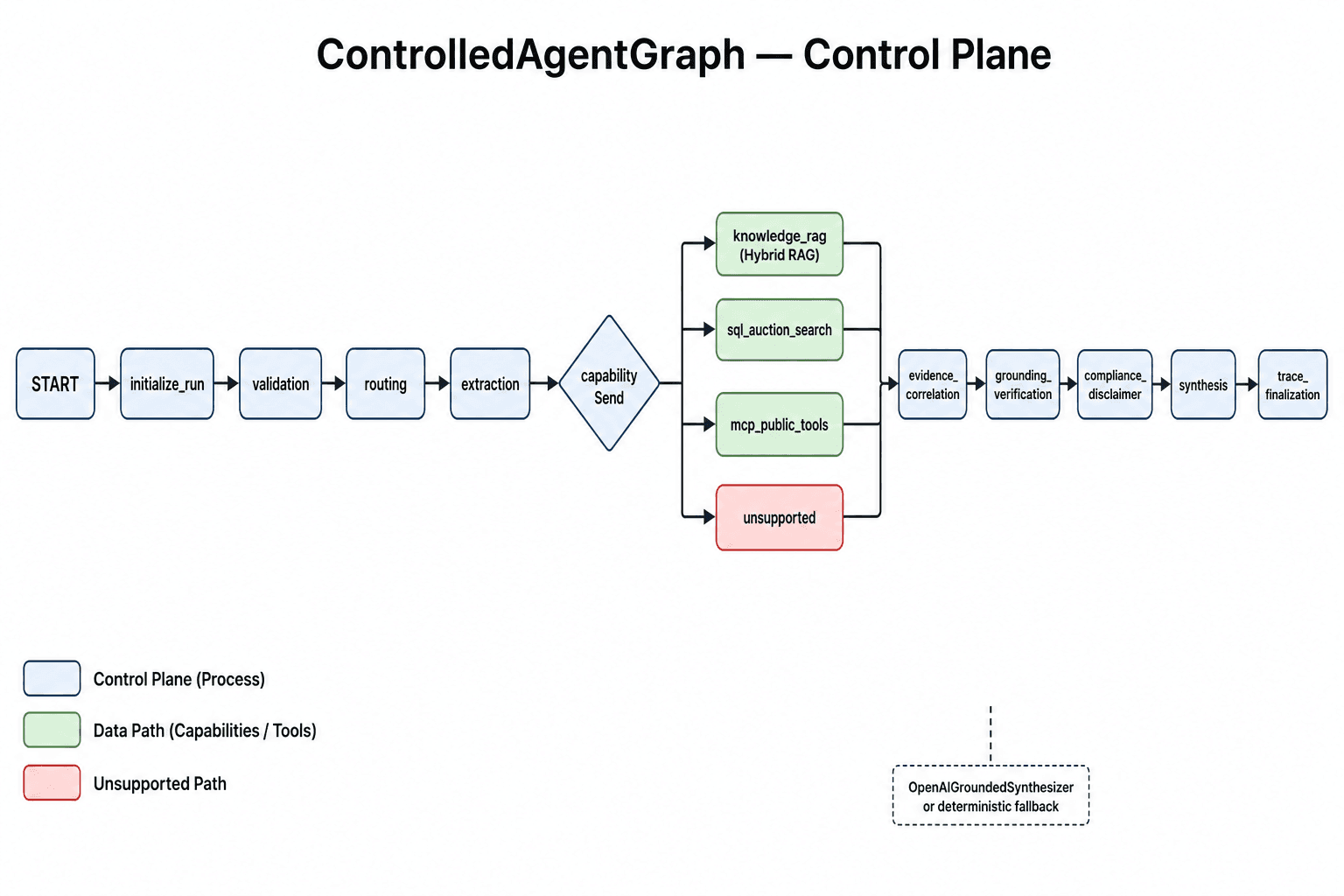

Control plane

ControlledAgentGraph nodes

One typed LangGraph orchestrator — bounded intents and budgets, not unconstrained ReAct.

ControlledAgentGraph control plane from validation through capability fan-out to grounded synthesis — Control plane — agent graph

Node	Responsibility
`validation`	Length ≤ 4000; injection heuristic
`routing`	Heuristics + optional OpenAIIntentClassifier
`extraction`	Deterministic entities + optional OpenAIEntityExtractor
`knowledge_rag`	Hybrid RAG — policy chunks only
`sql_auction_search`	search_auction_records filters
`mcp_public_tools`	County calendar / WCAD live tools
`grounding_verification`	Drop uncited / ungrounded facts
`compliance_disclaimer`	Auction/public intents
`synthesis`	Grounded LLM or deterministic fallback

Data planes

Three retrieval paths — RAG is only one

Dashboard Excel parse is a fourth UX path (browser-only) and is never the AI graph’s search source.

Plane	Offline	Online	Vector?
Policy RAG	Yes — ingest URLs	Hybrid retrieve + LLM	Yes
Auction index	Yes — ingest xlsx	SQL filters (+ CTA to dashboard)	No
Public records	Optional registry only	Live scrape each ask	No

Security

Tenancy & trust boundary

Trust boundary at BFF; API re-validates JWT (same Supabase project).
Default role user: auction:read, document:read, tool:execute.
Egress allowlist; MCP bearer for service callers only.
Telemetry sanitizes secrets / PII; chat responses Cache-Control: no-store.
Browser never holds service-role keys and never calls OpenAI, FastAPI, or /mcp for Front Door chat.

Decisions

Architecture choices

1.One typed LangGraph orchestrator — not unconstrained ReAct or peer agents.
2.SQL for auction filters; hybrid RAG only for unstructured policy.
3.Live allowlisted tools for county/WCAD — no arbitrary browsing.
4.Grounded synthesis + deterministic fallbacks.
5.Expand/contract schema migrations; architecture docs stay with behavior changes.
